Jumper Cables For Car Batteries

Car batteries are essential for powering a vehicle's electrical systems and engine. However, like all batteries, they can lose charge over time or fail unexpectedly. This is where jumper cables come into play, providing a simple yet effective solution to jump-start a dead battery. In this article, we'll explore what jumper cables are, why they're essential, the different types available, and how to use them safely and effectively.

What is a Jumper Cable?

Jumper cables, also known as booster cables, are insulated wires with alligator clips at each end. They are used to connect a dead or low-voltage car battery to a fully charged one from another vehicle or a battery pack. This temporary connection allows electricity to flow from the charged battery to the dead one, providing the necessary power to start the engine.

Anatomy of a Jumper Cable

A typical set of jumper wires consists of two wires—one red and one black—each equipped with heavy-duty clamps. The red cable is the positive (+) cable, while the black is the negative (-) or ground cable. The cables are usually made from copper or aluminium wire, which are excellent conductors of electricity, and are insulated with rubber or plastic to prevent accidental shocks or short circuits.

Why Do We Use Jumper Wires?

Jumper cables are an essential tool for any vehicle owner. They provide a quick and easy solution to a common problem—dead car batteries. There are several reasons why a car battery might die, including leaving the headlights on, cold weather, an old or faulty battery, or an electrical issue in the vehicle. Jumper cables offer a way to get back on the road without the need for professional assistance or towing, saving both time and money.

Benefits of Using Jumper Cables

• Jumper cables are portable and easy to use, making them a convenient tool for emergency situations.
• They provide a cost-effective solution compared to other battery-related services or products.
• Jumper cables can be used with any vehicle that has a compatible battery, regardless of make or model.
• Having jumper cables in your car ensures you're prepared for unexpected battery failures, whether it's your own vehicle or someone else's that needs assistance.

Types of Jumper Cables

Jumper wires come in various lengths, gauges, and quality levels, each suited for different situations and vehicle types. Understanding the differences can help you choose the right set for your needs.

1. Gauge Rating

• 2-Gauge Cables: These are heavy-duty cables designed for larger vehicles, such as trucks and SUVs. They are capable of carrying a higher current, making them ideal for jump-starting larger engines.
• 4-Gauge Cables: Suitable for most vehicles, including cars, motorcycles, and smaller trucks. They offer a balance between thickness and flexibility, providing sufficient power for standard vehicle batteries.
• 6-Gauge Cables: Lighter and more flexible, these cables are suitable for smaller vehicles or occasional use. However, they may not be powerful enough for larger engines or severely drained batteries.
• 8-Gauge Cables: These are the thinnest and least powerful jumper cables, often used for compact cars or small engines. They are less effective for jump-starting in extreme conditions or with larger batteries.

2. Length of Cables

• 12-16 Feet: The standard length for most jumper cables. This length is usually sufficient to connect vehicles parked next to each other or in close proximity.
• 20-25 Feet: Longer cables offer more flexibility, especially in situations where the vehicles cannot be positioned closely together. However, longer cables may experience more voltage drop, which can affect performance.

3. Material Quality

• Copper Cables: These cables offer excellent conductivity and are the most efficient at transferring power. They are often more expensive but provide better performance, especially in cold weather.
• Aluminium Cables: Lighter and more affordable, aluminum cables are a popular choice for general use. However, they are not as conductive as copper, which can lead to slower charging times.

Types of Jumper Wires Based on Connector Configurations

When discussing jumper cables, most people think of the standard setup with two sets of clamps (positive and negative). However, some specialized jumper cables are designed with different connector configurations, often referred to as male-to-male, male-to-female, or female-to-female. These terms describe the types of connectors or ends on the cables and are more commonly used in electronics and other power transfer applications. Here's how they apply to jumper cables:

1. Male-to-Male Jumper Wires

Male-to-male jumper cables have clamps on both ends. This is the most common type of jumper cable used for jump-starting vehicles. The "male" term refers to the clamps that connect directly to the battery terminals.

These cables are used for traditional jump-starting processes, where one set of clamps is attached to the dead battery, and the other set is attached to the charged battery. Male-to-male jumper cables are designed for easy and safe use in vehicle-to-vehicle jump-starts.

When using male-to-male jumper cables, it’s important to follow the correct sequence when connecting and disconnecting the cables to avoid sparks, short circuits, or damage to the vehicle's electrical system.

2. Male-to-Female Jumper Wires

Male-to-female jumper cables are less common in the context of car batteries but are used in various electrical and electronic applications. In this configuration, one end of the cable has a male connector (clamp), and the other end has a female connector (socket).

In the context of jump-starting vehicles, these types of cables are not typically used. However, they may be found in other automotive accessories or battery packs where a specific connector type is needed for compatibility with devices or power sources.

If you encounter a situation where a male-to-female cable is required, ensure it’s compatible with the battery or device you're working with. Misuse of such cables in place of standard jumper cables could result in improper connections or failure to provide the necessary power.

3. Female-to-Female Jumper Wires

Female-to-female jumper cables feature sockets on both ends rather than clamps. Similar to male-to-female cables, this configuration is typically used in electronic circuits or specific power connections rather than for jump-starting vehicles.

These cables are not used for jump-starting car batteries but are more common in specialized electrical applications where a female socket is needed on both ends to connect devices, circuits, or power sources.

In automotive contexts, female-to-female cables are rarely, if ever, used for jump-starting purposes. If you need to connect power sources with female connectors, it’s crucial to use the correct adapter or connector rather than attempting to use a female-to-female cable.

Practical Consideration for Vehicle Use

For typical automotive use, the male-to-male jumper cable setup is the standard and most widely available. This configuration is designed specifically for the purpose of jump-starting vehicles, making it the safest and most effective option. The male-to-female and female-to-female configurations, while useful in certain specialised applications, are not suitable or practical for vehicle jump-starting.

When purchasing jumper cables, ensure that you are selecting the correct type for the intended purpose—male-to-male is what you need for traditional car battery jump-starting. Also, always consider the cable's gauge, length, and material quality to ensure it meets your specific needs.

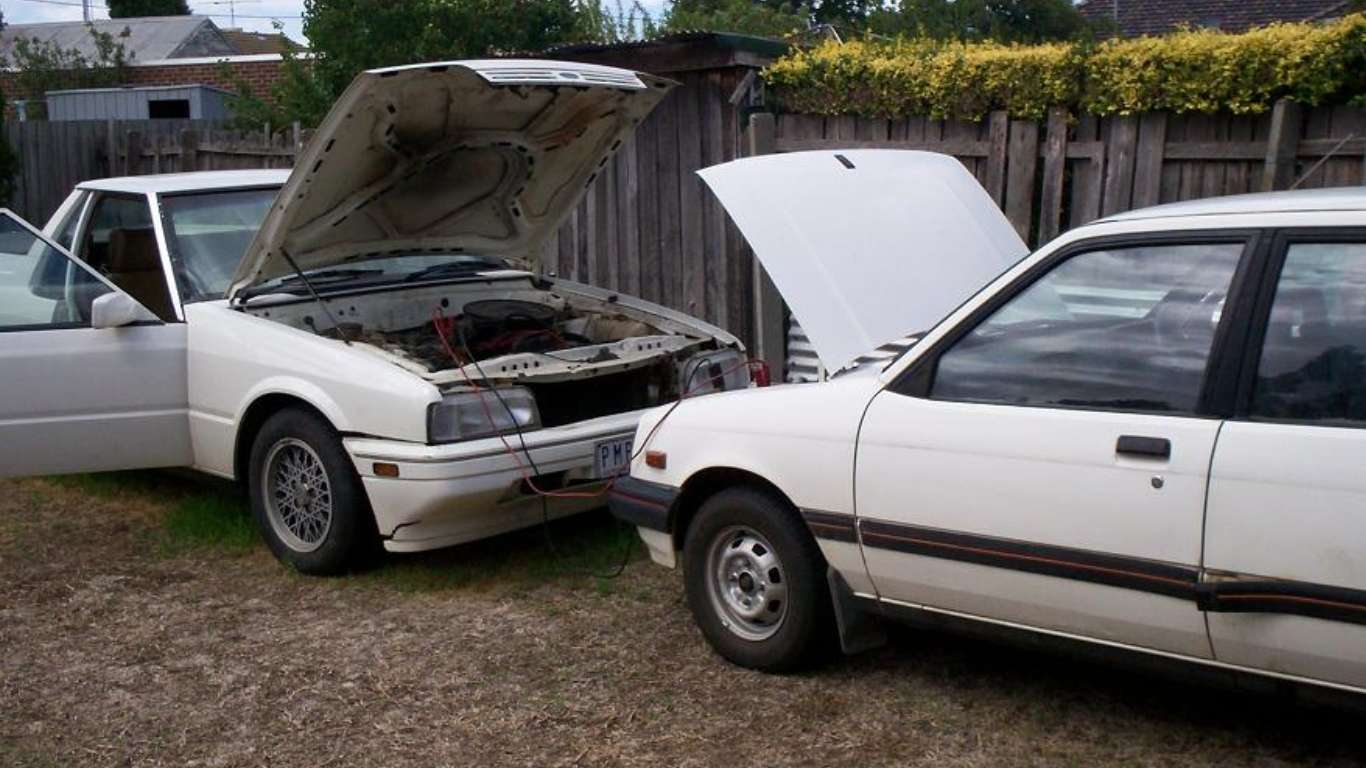

How to Use Jumper Cables

Using jumper wires is a straightforward process, but it requires caution to avoid potential hazards like short circuits or sparks. Follow these steps to safely jump-start your vehicle:

Step 1: Safety First

• Position the Vehicles: Park the donor vehicle (the one with a charged battery) close enough to the dead vehicle so that the jumper cables can reach both batteries, but ensure they do not touch each other. Both vehicles should be turned off.
• Inspect the Batteries: Check both batteries for any visible damage, such as cracks or leaks. Do not attempt to jump-start a vehicle with a damaged battery.
• Ensure Proper Ventilation: If the vehicles are in a garage or enclosed space, make sure to open the doors or windows to avoid inhaling harmful fumes.

Step 2: Connecting the Jumper Cables

• Red to Dead: Attach one end of the red (positive) cable to the positive terminal (+) of the dead battery.
• Red to Donor: Connect the other end of the red (positive) cable to the positive terminal (+) of the charged battery.
• Black to Donor: Attach one end of the black (negative) cable to the negative terminal (-) of the charged battery.
• Black to Ground: Instead of connecting the other end of the black (negative) cable directly to the dead battery, find an unpainted metal surface on the engine block or chassis of the dead vehicle and connect it there. This helps prevent sparks near the battery, which can be dangerous.

Step 3: Start the Engines

• Start the Donor Vehicle: Turn on the engine of the donor vehicle and let it run for a few minutes. This allows the charged battery to transfer power to the dead one.
• Start the Dead Vehicle: Attempt to start the dead vehicle. If it doesn’t start immediately, wait a few more minutes and try again. Do not crank the engine for more than 10 seconds at a time to avoid damaging the starter.
• Running the Engine: Once the dead vehicle starts, let both vehicles run for a few minutes to ensure the dead battery gets a sufficient charge.

Step 4: Disconnecting the Jumper Cables

Remove the jumper cables in the reverse order of how you connected them:

• First, remove the black (negative) cable from the grounded metal surface of the dead vehicle.
• Next, remove the black (negative) cable from the donor vehicle.
• Then, remove the red (positive) cable from the donor vehicle.
• Finally, remove the red (positive) cable from the dead vehicle.

Let the Engine Run: Keep the engine of the revived vehicle running for at least 15-30 minutes or drive it around to allow the alternator to recharge the battery fully.

Verdict

Jumper wires are an indispensable tool for any vehicle owner, providing a simple and effective solution to the common problem of a dead battery. By understanding the different types of cables and following the correct procedures for their use, you can ensure that you're always prepared for unexpected battery issues. Investing in a quality set of jumper cables and keeping them in your vehicle can save you time, money, and the inconvenience of being stranded with a dead battery.
